Simrad NSO evo3S 24" MFD System Pack

NSO evo3S 24" MFD System Pack

Complete your ideal boat set up with the ultimate navigation system. NSOevo3S gives you 2x faster response times delivered through an iMX 8 high-performance processor. The Full HD gives you stunning clarity, and intuitive touchscreen and remote keypad controls help give you total control of your onboard electronics.

Supreme Performance

Every NSO evo3S display features an iMX 8 integrated six-core processor delivering category-leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSO evo3’s powerful core, and complements any helm design from ultra-modern to a timeless classic.

Ultimate Clarity with Intuitive Touchscreen Control

NSO evo3S delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch.

Fully Connected

Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, and integration with an extensive range of 3rd party technologies.

Features:

• iMX 8 Integrated six-core processor for superior performance
• Ultra-sharp, full HD 24-inch display
• Seamless touchscreen control of your entire connected SIMRAD® system
• Low-profile glass helm styling
• Extended visibility with six-panel split-screen option
• Connect with smartphones, tablets, and internet hotspots
• Integrate with an extensive range of 3rd party technologies

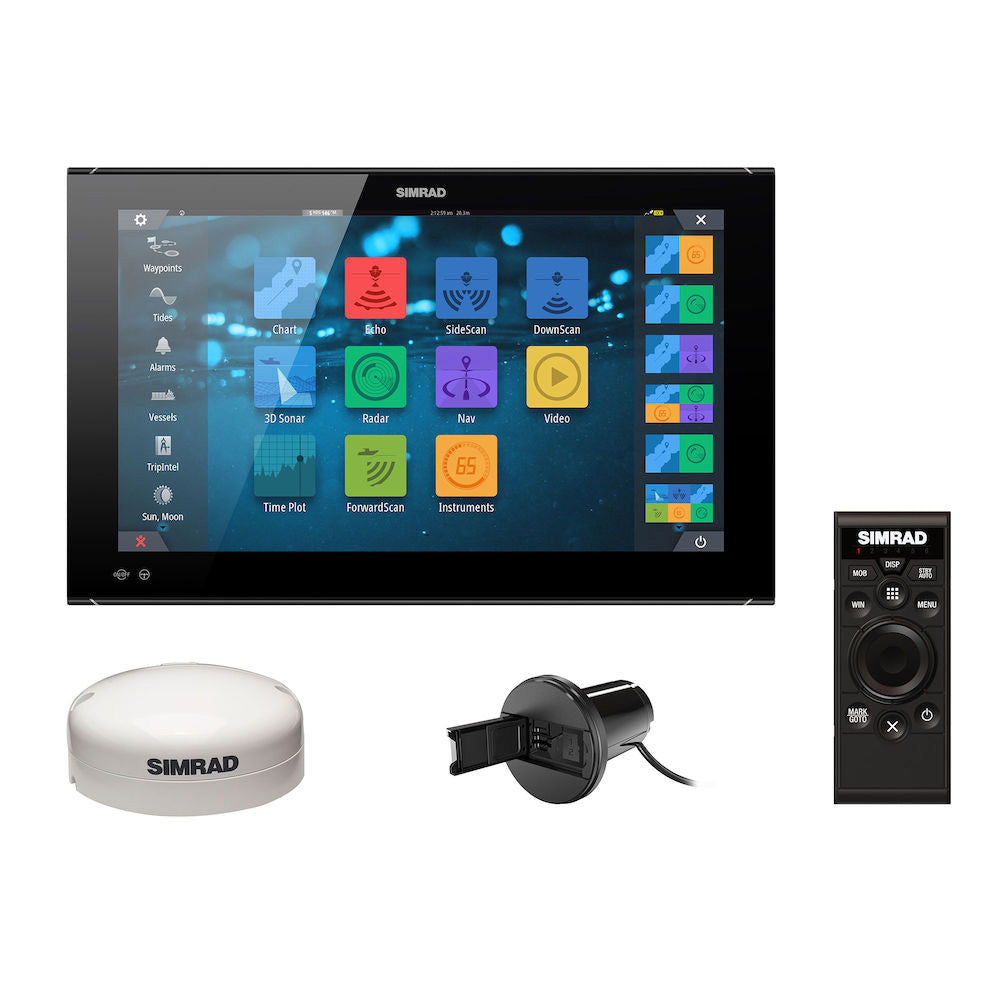

Kit Includes:

• 24 in. NSOevo3S
• Keypad
• GPS antenna
• Chart card reader

Display Specifications:

• Screen Size: 24-inches
• Resolution: 1920 x 1080
• Brightness: 1000 nits
• Touch Screen: Full touch screen (multi-touch)
• Viewing angles in degrees (typical value @ contrast ratio = 10): 80 degrees top/bottom, 80 degrees left/right

Electrical Specifications:

• Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max)
• Power Consumption: Max 40 W +- 4 W 50 W +- 4 W 80 W +- 4 W
• Recommended Fuse Rating: (12 V / 24 V) 6 A / 3 A 7 A / 4 A 10 A / 5 A

Environmental Specifications:

• Temperature Range: -15°C to +55°C (5°F to 131°F)
• Storage Temperature: -20°C to +60°C (4°F to 140°F)
• Waterproof Rating: IPX6 (when panel mounted correctly with only the front exposed)
• Humidity: IEC 60945 Damp heat 66°C (150°F) @ 95% relative (48 hr)
• Shock and Vibration: 100 000 cycles of 20 G

Interface/Connectivity Specifications:

• Ethernet: 3x (RJ45)
• USB: 3x (USB-A)
• J1393: 1x (Micro-C)
• NMEA 2000: 1x (Micro-C)
• NMEA 0183: 4 ports
• Video Output: 1x high-definition video output (1080p, no HDCP, HDMI-A)
• Video Input: 2x composite video (BNC) / 1x high-definition video (1080p, HDCP 1.4, HDMI-A)
• Data Card Reader: 1x slot (microSD)
• Wireless: Internal 802.11b/g/n

Physical Specifications:

• Compass Safe Distance (Metric, Imperial): 50 cm
• Weight: 7.8 kg (17.2 lbs.)

Specifications:

• Touchscreen: Yes
• Screen Size: 24-inches
• Box Dimensions: 14"H x 21"W x 30"L WT: 34.6 lbs
• UPC: 9420064108466
