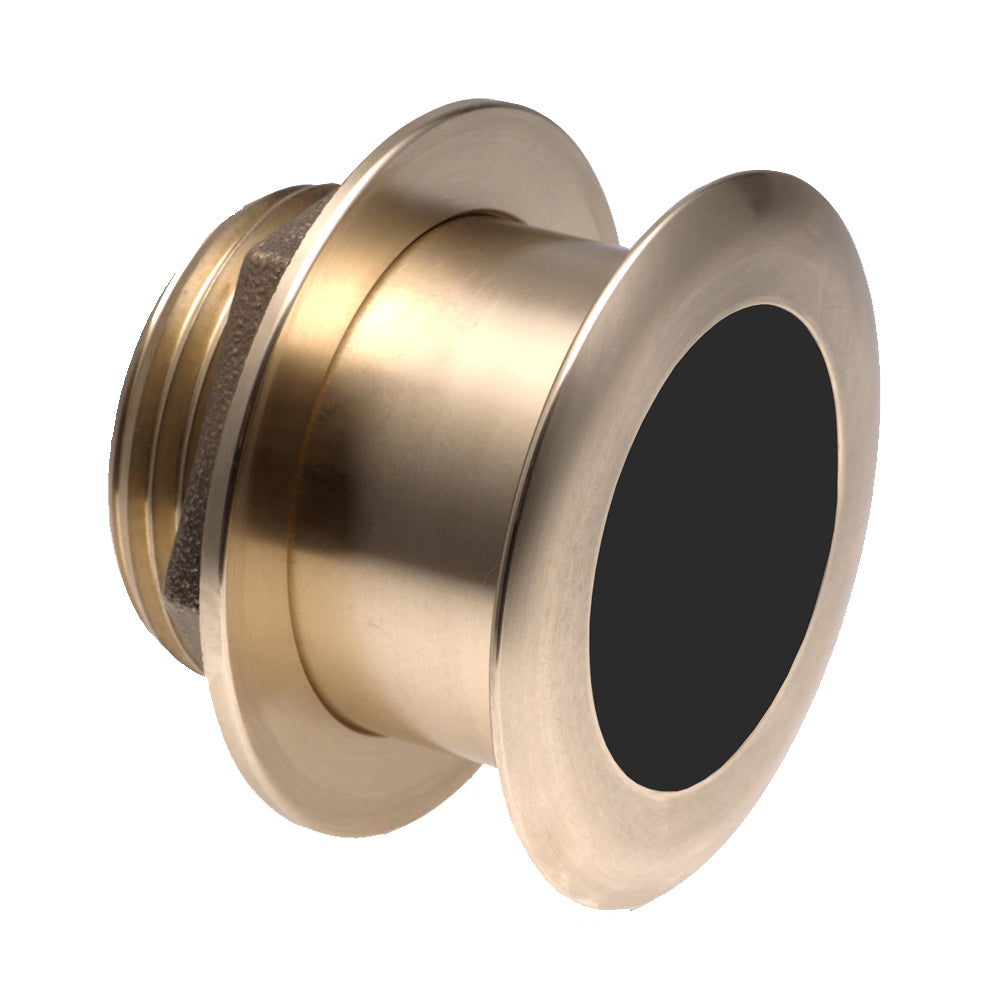

Raymarine B175H-W 1KW Bronze Thru Hull 12 Tilted Element

B175H-W 1KW Bronze Thru Hull 12° Tilted Element

Features:

• Installation: Thru Hull
• Material: Urethane
• Power (RMS): 1kW
• Max Depth(ft): 800
• Frequency (KHz): 150-250
• Records: Depth and Temperature
• Approved Hull Material: Fiberglass/Wood
• Cable Length (ft/M): 6ft/2M
• Supported deadrise: 8-15° Deadrise

Additional Notes: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10M Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.

Specifications:

• Speed Included: No
• Temperature: Yes
• Mounting Style: Thru-Hull
• Imagining: Standard
• Chirp: High Wide
• Cable Length (Feet): 6'
• Box Dimensions: 9"H x 11"W x 12"L WT: 9.75 lbs
• UPC: 723193796269
