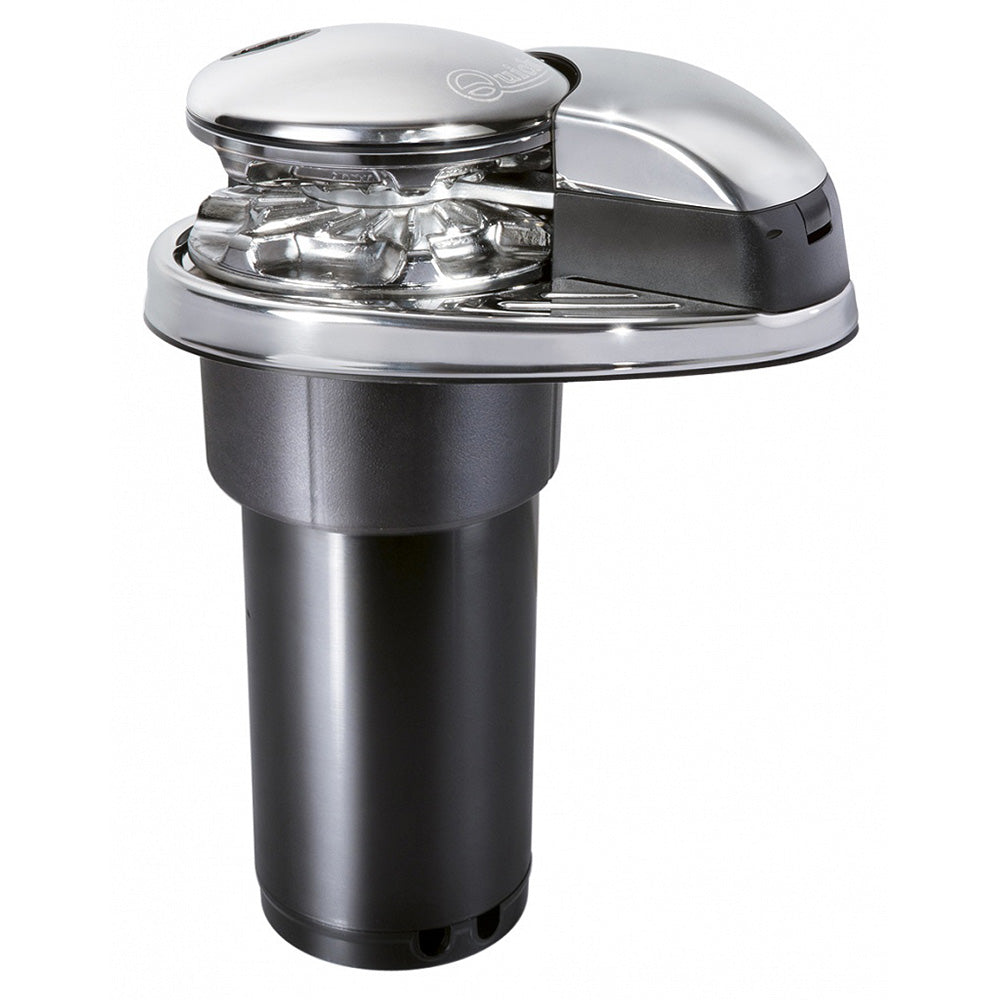

Quick Prince DP2E 1000 Windlass - 800W, 12V 7MM or 1/4" Chain to 9/16" Rope

Prince DP2E 1000 Windlass - 800W, 12V 7MM or 1/4" Chain to 9/16" Rope

The DP2E is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel, which is a durable element when dealing with harsh marine environments. Features include an IP67 watertight motor, epicyclical gearbox, inspection lid, and easy drop-in installation. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Features:

• Vertical windlass
• Includes T6415-12 Solenoid
• 7mm - 1/4" Gypsy
• Boats 23-40 ft
• Requires 9/16" three-stranded polyester rope
• Stainless steel AISI 316 base and anodized aluminum in hard oxide.
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Supplied with pressure lever
• Inspection lid
• Motor watertight to IP66
• Anodized aluminum gearbox

Specifications:

• Motor power - 800 W
• Motor supply voltage - 12 V
• Maximum pull - 820 Kg / 1808 lb
• Maximum working load - 290 Kg / 639 lb
• Working load - 95 Kg / 209 lb
• Current absorption @ working load - 84 A
• Maximum chain speed - 22,5 m/min / 73.8 ft/min
• Maximum chain speed @ working load - 15.2 m/min / 49.9 ft/min
• Weight - 8,3 Kg / 20.9 lb
