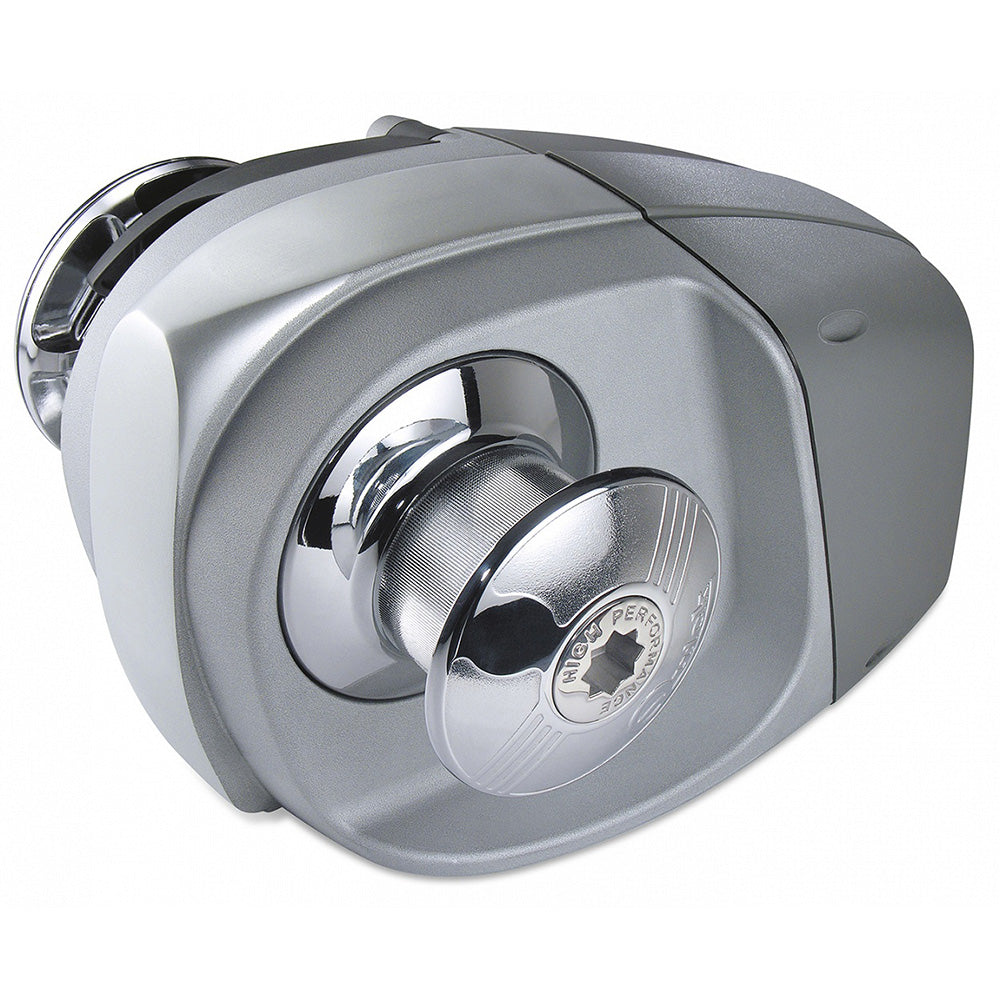

Quick Hector HC3 1012D Horizontal On Deck Windlass w/Drum 10mm Chain to 5/8" Rope - 12V - 1000W

Hector HC3 1012D Horizontal On Deck Windlass with Drum 10mm Chain to 5/8" Rope - 12V - 1000W

The Hector HC3 D (Drum) is a horizontal windlass application perfect for boats with limited space in the anchor locker. This unit is made of anodized aluminum in hard oxide, with a composite motor jacket that is durable in harsh marine environments. Equipped with an emergency manual lift system, you can easily retrieve your anchor during instances when you may lose battery power on your boat, as well as a manual free-fall system to quickly drop the anchor. This unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Features:

• Horizontal on-deck windlasses
• For 33- 43 ft boats
• Base in anodized aluminum in hard oxide
• Jacket in composite material or in hard-oxide-anodized aluminum
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Supplied with pressure lever
• Integrated solenoid unit
• Emergency manual lift system
• Manual Free-Fall system
• IP66 watertight motor

Specifications:

• Motor power - 1000W
• Motor supply voltage - 12V
• Maximum pull - 1300 Kg / 2866 lbs
• Maximum working load - 400 kg/881.8 lbs
• Working load - 130 kg/286,6 lbs
• Current absorption @ working load - 140 A
• Maximum chain speed - 32,4 m/min 106.3 ft/min
• Maximum chain speed @ working load - 17,8 m/min 58.4 ft/min
• Weight - 55.8 lbs
