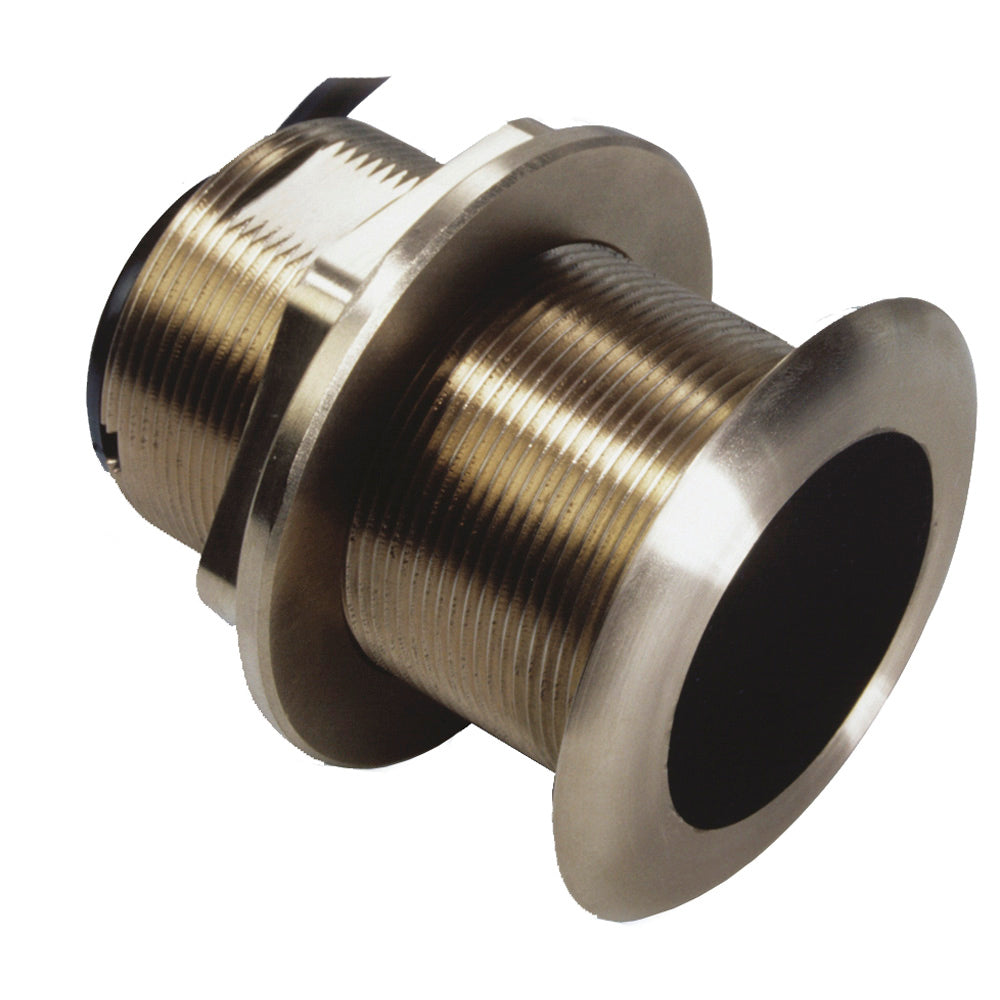

Navico B60-20, 20 Degree Tilted Element Transducer

B60 Tilted Element™ 20°

20° titled version is designed for 16° - 24° deadrise angles


The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.

Features:

• Depth/Temp

• 50/200 kHz

• 600w RMS

• Mid-performance

• 7 Pin Blue Connector

• Bronze

Specifications:

• Mounting Style: Thru-Hull
• Temperature: Yes
• Speed Included: No
• Box Dimensions: 4"H x 8"W x 10"L WT: 5.2 lbs
• UPC: 421945344354
