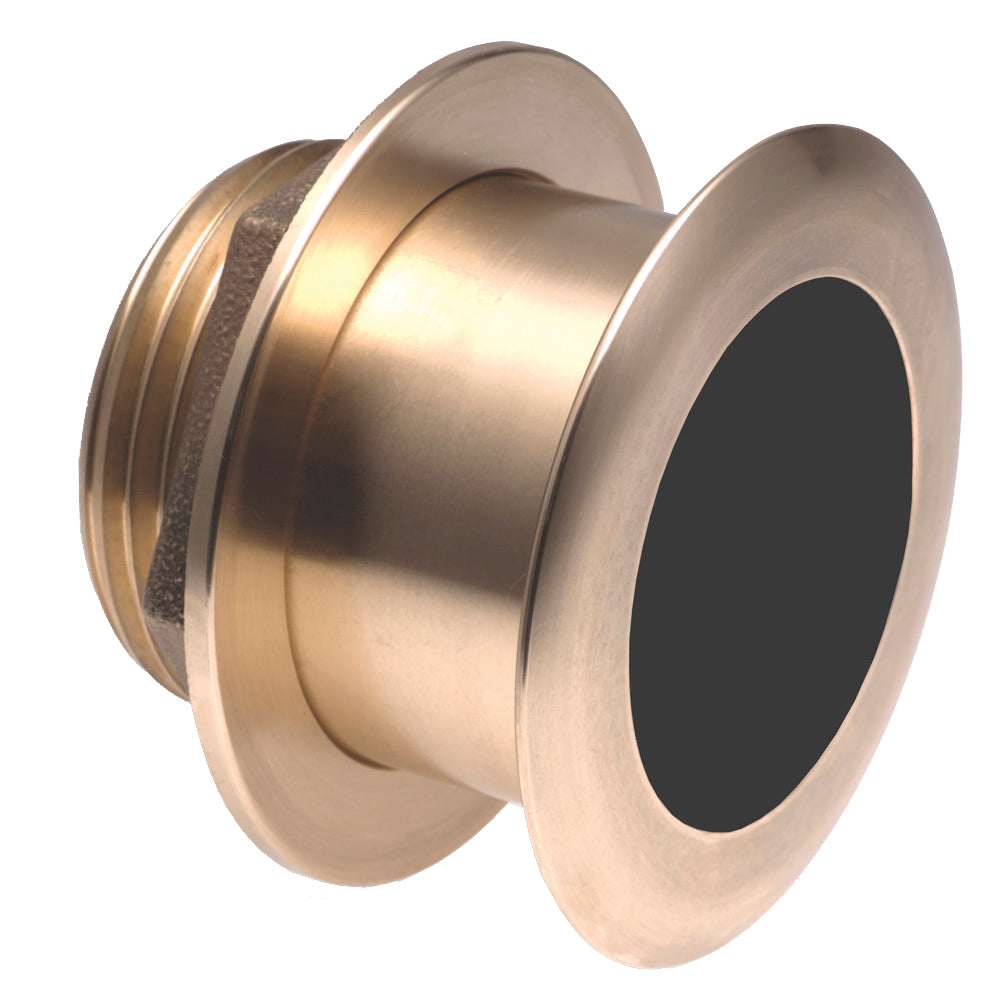

Navico B164 12 Degree Tilted Element Transducer w/Blue Connector

Navico B164 12 Degree Tilted Element Transducer w/Blue Connector

$1,275.00
$1,275.00
Sale Sold out
Shipping calculated at checkout.

B164 12 degree 1kW Tilted Element

Step up to a 1kW-Without a Fairing! Airmar has taken our innovative Tilted
Element™ technology to a higher power. The new 1kW, flush-mount, tilted
element transducers are perfect for fast, trailered tournament sport fishing
vessels who cannot have a high-performance fairing. The flush mounted,
bronze housing protrudes less than 6.35 mm (0.25") outside your hull and can
sit on trailer rollers and bunks with no damage at all. The ceramic arrays
are tilted inside the housing giving you the perfect vertical beam with
maximum energy on what is directly below your boat. Take your fishfinder to
the next power with 1kW tilted element transducers.

12 degree tilted version for 8 to 15 degree hull deadrise

Compatible with Lowrance HDS Series and Simrad NSE Series Multifunction Display units.

Features:

  • Depth/Temp
  • 50/200 kHz
  • 1 kW RMS
  • High-performance
  • 7 pin Blue Connector
  • Bronze
  • 12 degree

    Specifications:

    • Temperature: Yes
    • Speed Included: No
    • Pins: 7
    • Mounting Style: Thru-Hull
    • Box Dimensions: 8"H x 11"W x 12"L WT: 10.55 lbs

    Owner's Manual (pdf)
    Brochure (pdf)

    • NAV-B164-12-BL
