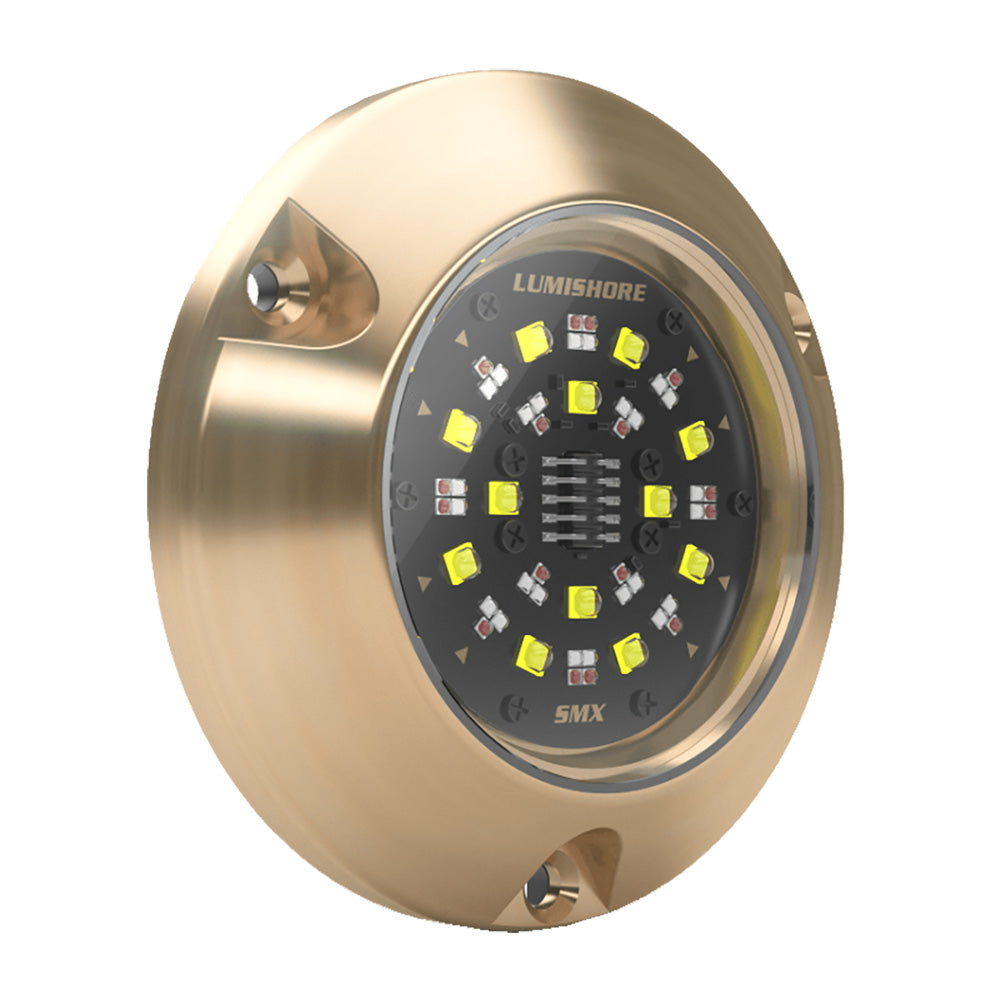

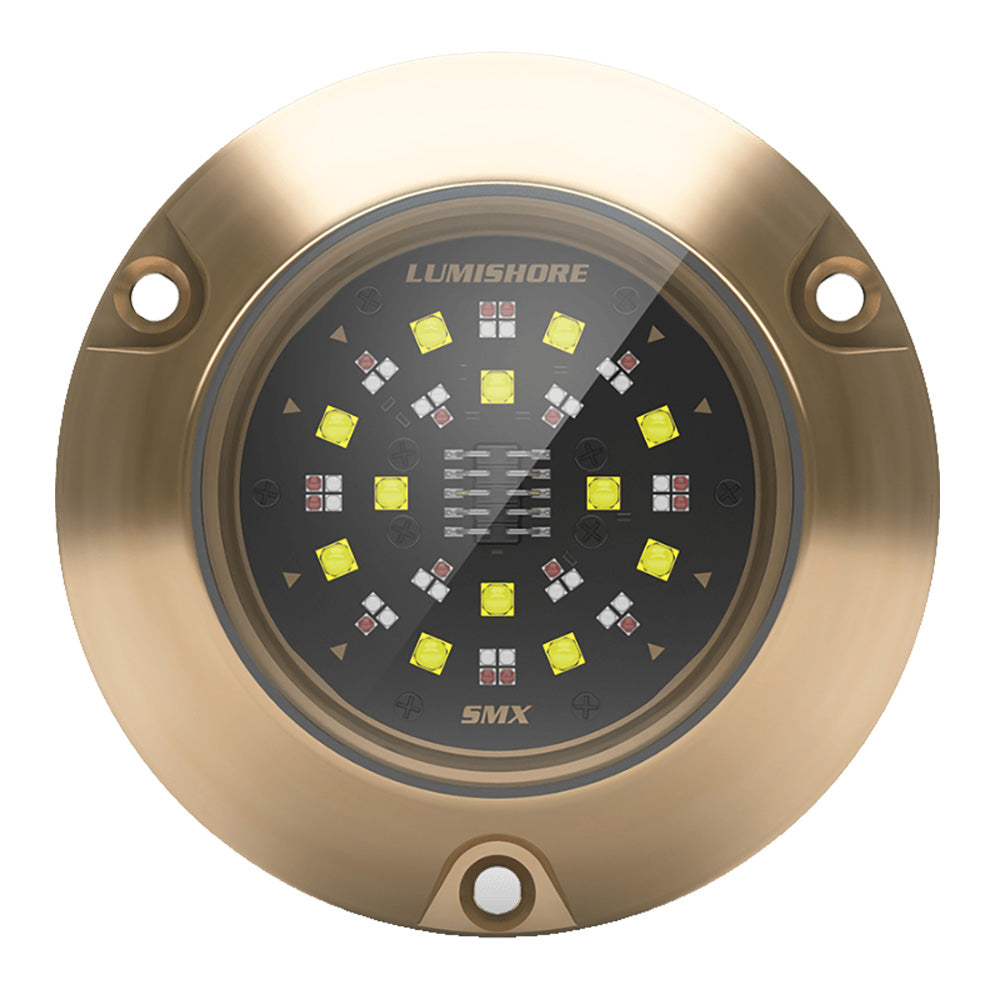

Lumishore EOS SMX154 Single Surface Mount Light

EOS SMX154 Single Surface Mount Light

The SMX154 offers boat owners unprecedented full color control of their underwater lighting system, delivering 7,000 verified fixture lumens and a wide 90° beam angle.

Control your SMX154 underwater lights directly from your compatible MFD and/or Lumishore Display.

Lumishore's unique light discovery and light auto-install function simplifies the system setup and reduces installation time.

Suitable for stepped hulls, transoms, and side mounting.

Specifications:

• Available Colors: Full EOS Color Change (RGBW)
• Lumens: 15,750
• Fixture Lumens (White): 7,000
• Number & Type Of LED: White–12×10W / Green–12×3W / Blue–12×3W / Red–16×3W
• LED Power - HICOB Array: Yes
• Typical LED Life: 50,000+ Hours
• Warranty: 3 Years
• User Control Options: Certified MFD Screen EOS-LUX-SUPRA Display WiFi Control from Smart Phone or Connected Device (via MFD or 2204i Wifi)
• Electrical Installation: Plug-and-Play Connections
• Housing Type: Marine Bronze Body with Borosilicate Glass Lens

Specifications:

• Color: RGBW
• Material: Bronze
• Mounting Style: Surface
• Voltage - Input Range (Volts): 12/24V
• Box Dimensions: 3"H x 6"W x 6"L WT: 1.85 lbs
• UPC: 847772003910
