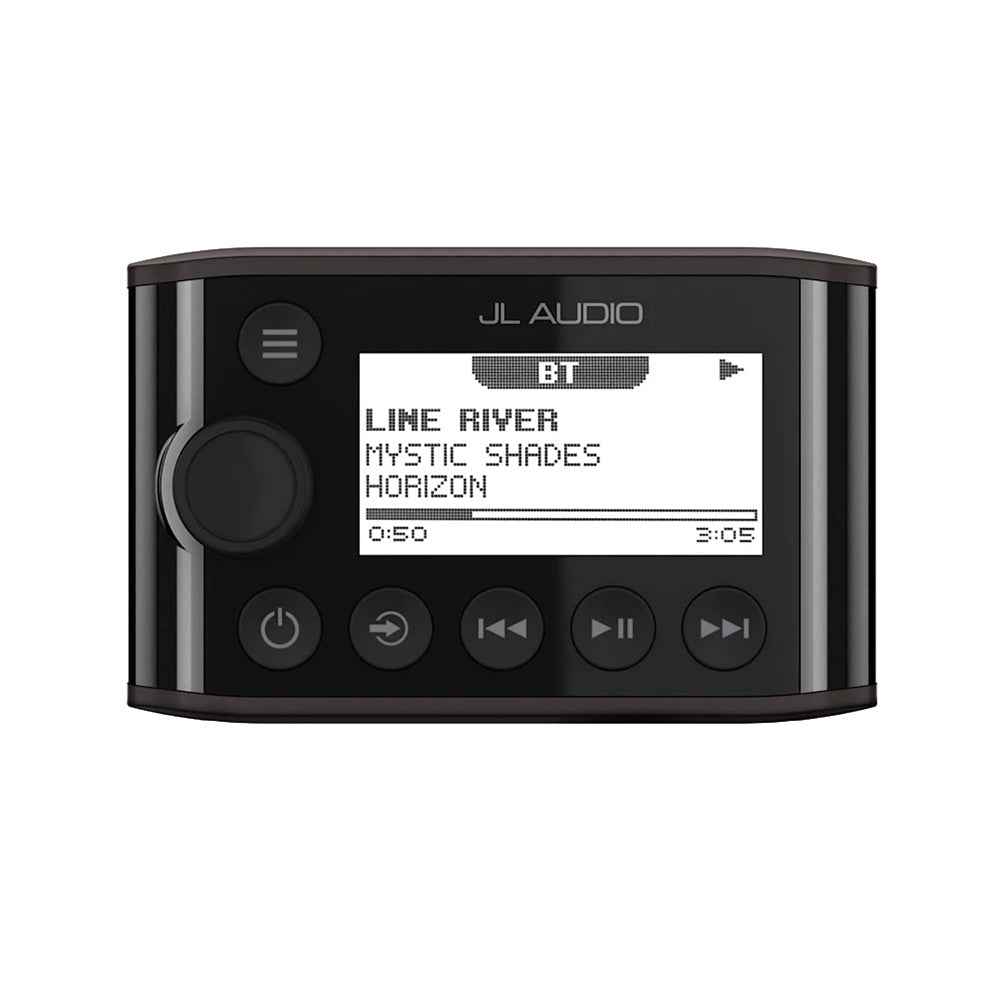

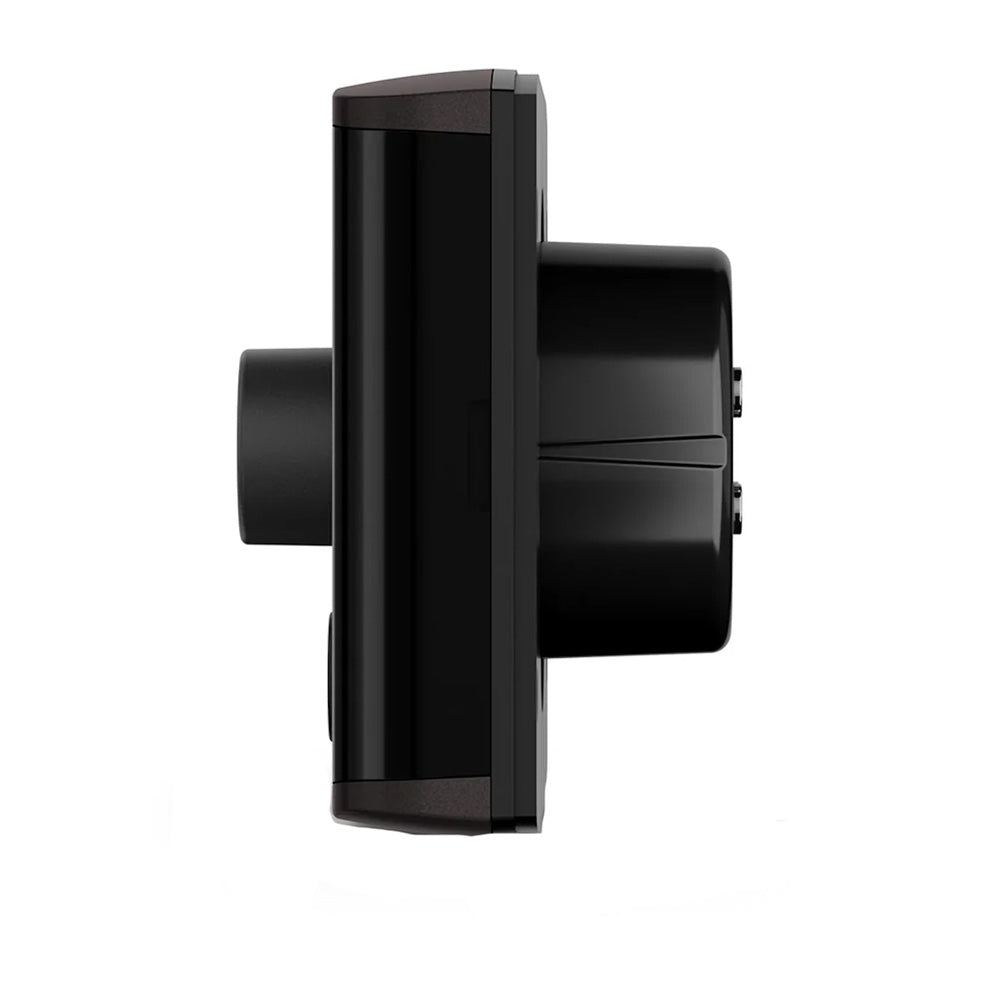

JL Audio NRX-300 Wired Remote

NRX-300 Wired Remote

Control your compatible marine head unit from any zone on board your boat.

Features:

• OPTICALLY BONDED LCD DISPLAY
• CONNECTS TO YOUR BOAT’S NMEA 2000® NETWORK
• CONTROL UP TO 4 AUDIO ZONES
• SINGLE WIRED CONNECTION FOR PLUG-AND-PLAY SETUP
• DISPLAY DATA FROM OTHER DEVICES ON THE SAME NMEA NETWORK
• IPX7-RATED FOR MARINE ENVIRONMENTS

General:

• Warranty: 3 years
• Physical dimensions (Height): 2.76" (70 mm)
• Physical dimensions (Width): 4.33" (110 mm)
• Physical dimensions (Depth): 1.97" (50 mm)
• Control surface dust/water rating (when properly installed): IPX7
• Operating temperature range: 32° F to 122° F (0° C to 50° C)
• Current draw (max): 110 mA
• Power Input: 10.8-16 VDC

Stereo Features:

• Display size: 2.6" (66 mm)
• Display type: optically bonded monochrome LCD

Networking & Connections:

• NMEA 2000® ports: 1
• NMEA 2000® LEN: 3 (150 mA)

In The Box:

• JL Audio NRX-300
• Mounting gasket
• Four mounting screws
• Two screw covers
• T-connector for the NMEA 2000® Network
• Documentation
