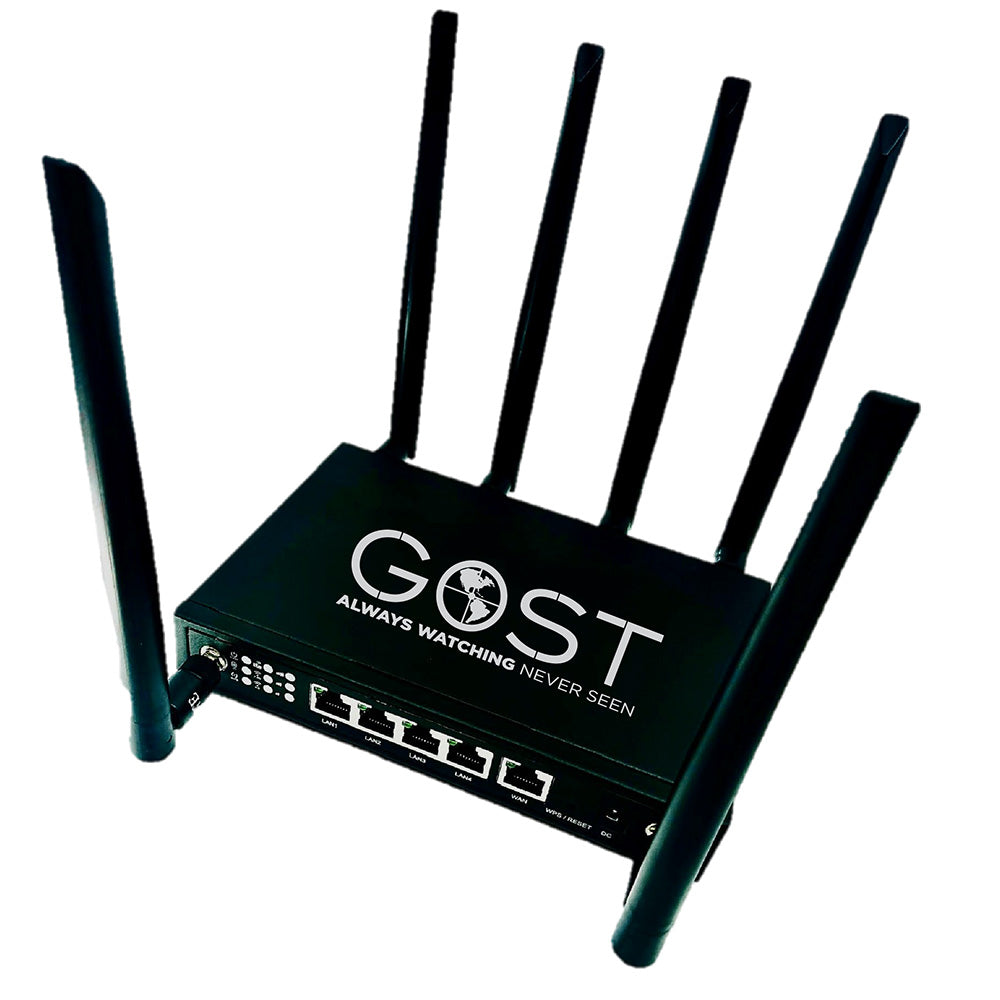

GOST MAXLiNK 4G Multi-Carrier Communicator E-SIM Select Router

MAXLiNK 4G Multi-Carrier Communicator E-SIM Select Router

Experience the most reliable cellular data networks through multiple carrier access in North America and the Caribbean. On-demand, always searching, minimal signal loss for better performance and connectivity to your vessel's security and surveillance systems while utilizing four major cellular carriers on one device that automatically switches between providers for the best possible cellular data connection and throughput. Its automatic multicarrier failover capability with faster speeds provides overlapping coverage due to combined networks and has created the most expansive footprint available on the market. Simple, plug-and-play with no APN programming makes installation easy and can also be configured for international capabilities. MAXLiNK is a multi-functional wireless 4G LTE with Cat.7 & Cat.13 capabilities and Wi-Fi, providing LTE through MCS technology.

Hardware:

• Mobile 4G/LTE (Cat 7 & Cat 13)
• Main CPU RTL8197FH-VG5-CG
• Memory 128MB
• Buttons Reset, WPS
• SIM Micro SIM Slot
• Antennas 4 Wi-Fi External Antennas (2 x 2.4GHz; 2 x 5.8GHz); 2 External LTE Antenna
• Ethernet Ports LAN - 4 x RJ45 10M/100M/1000M; WAN - 1 x RJ45 10M/100M/1000M
• MIMO 2*2 MU-MIMO
• Led Power Indicator LED; VSIM Indicator; LTE Indicator;2.4GHz Wi-Fi;
• 5.8GHz Wi-Fi; SIM Indicator; Signal LED (3 LED); WAN/LAN LED
• Temperature Working: 0°C40°C; Storage: -30°C 70°C
• Shell Material Metal
• Dimensions 180*130*30mm
• Weight < 1500 g (including packaging)

Software:

• Configuration Handover between Physical SIM and MCS
• Local WEB GUI Manage the CPE device
• Debug Mode RSSI level; Packet error rate; CINR; Dynamic Tx power; Modulation
• Encryption/Decryption AES; SNOW3G; NULL
• Power Control DL Power Control; UL Power Control
• Admin management Admin setting change; Device reboot, reset; Gateway setting
• Device Info Device model LTE module ID version SN; Vendor
• info SIM carrierï¼›connection statusï¼›Device timeï¼›IP addressï¼›connection time
• Software update Sending and receiving messages; Language setting
• TDD Bands FOTA and local update
• FDD Bands B34/B38/B39/B40/B41
• WCDMA Bands B1/B2/B3/B4/B5/B7/B8/B12/ B13/B17/B18/B19/B20/B25/ B26/B28/B29/B30/B66/B71 B1/B2/B4/B5/B8
