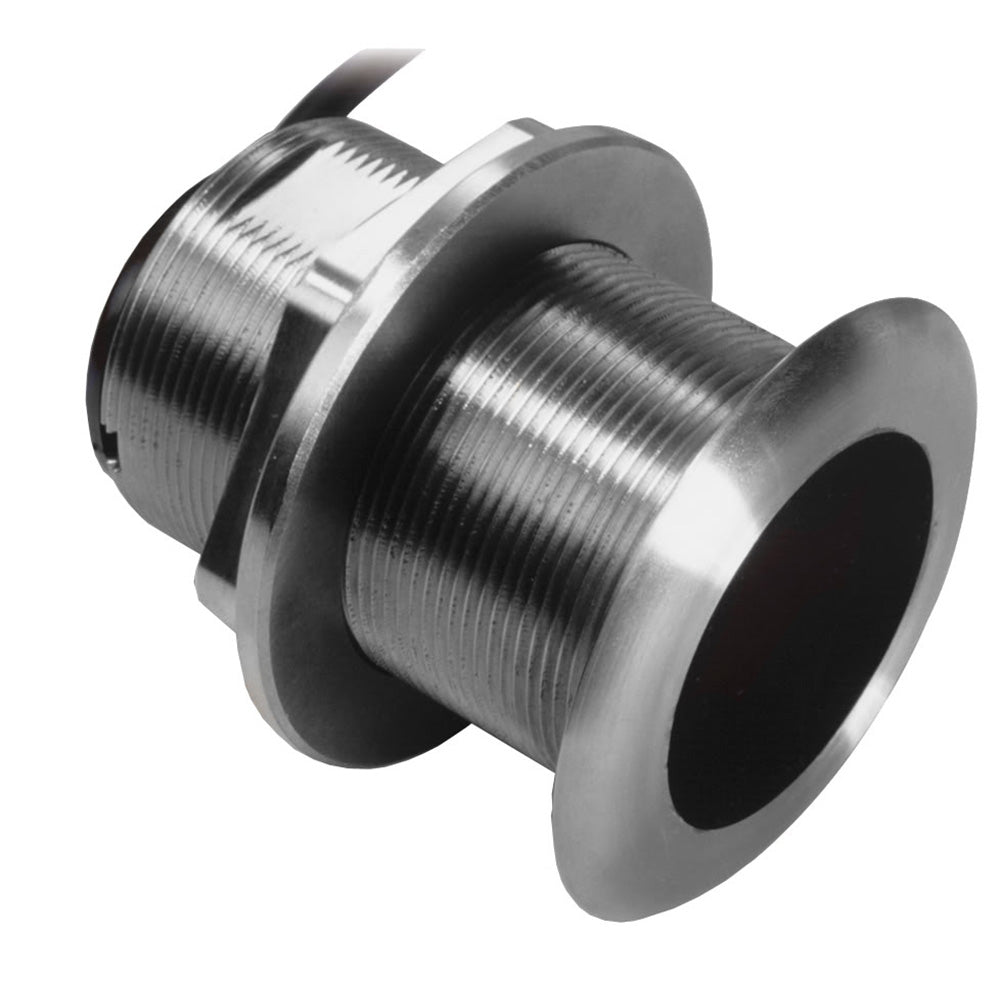

Furuno SS60 Stainless Steel Thru-Hull 20 Tilt, 50/200, 10-Pin

SS60 Stainless Steel Thru-Hull 20° Tilt, 50/200, 10-Pin

Stainless Steel Thru-Hull Transducer with Temp, 600W (10-Pin), 20° Tilted Element. If a thru-hull flush-style transducer is called for, the Tilted Element SS60-SLTD/20 will accommodate a deadrise angle between 16° and 24°. This transducer compensates for deadrise by angling the element inside the housing. The transducer is labeled with an arrow on top of the housing that should point towards the keel, whether it is installed to port or starboard. This ensures that the tilted element within the housing is given the correct orientation.

Features:

• 600 Watts
• 50/200 kHz
• 45/12 degree Beam Angles
• Stainless Steel Thru-Hull with Temperature
• 30' Cable with 10-Pin Connector

Specifications:

• Cable Length (Feet): 30FT
• Imagining: Standard
• Mounting Style: Thru-Hull
• Pins: 10
• Speed Included: No
• Temperature: Yes
