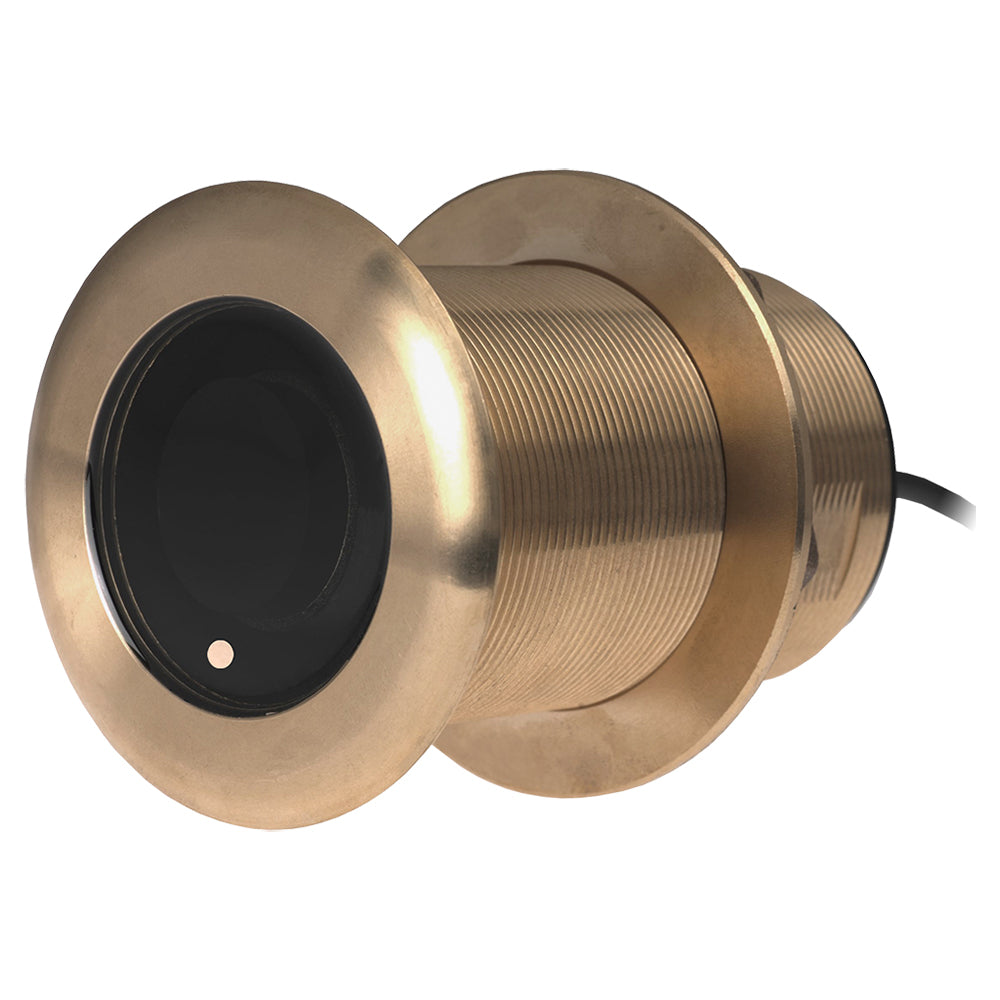

Airmar B60-20-FISO 20 Spade Connector f/Raymarine ST30, 40, 60, i40, i50 i60

B60-20-FISO 20° Spade Connector for Raymarine ST30, 40, 60, i40, i50 & i60

The B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth ONLY
• Mid-Performance
• Engineered for center-console and trailered boats
• Low-profile protrusion below the hull - no affect on your boats running performance
• Boat Size: Up to 8 m (25’)
• 50/200 kHz
• 600 W RMS
• Usable Shaft Length: 68.5 mm (2.70”)

Specifications:

• Mounting Style: Thru-Hull
• Box Dimensions: 2"H x 4"W x 8"L WT: 1.5 lbs
